The new generation data center switch developed by FLINES provides 2 and 3 layers of full line speed data exchange, meeting the high-performance, high availability, and elastic network requirements of enterprise and cloud computing data center application scenarios. It can be deployed as a cabinet top switch or in a distributed backbone network, forming a non blocking CLOS architecture data center network. The data center switch developed by FLINES provides the high reliability hardware design required for data center application scenarios, supports VxLAN and NVGRE tunnel protocols, and is an ideal ToR switch for virtualized data centers.

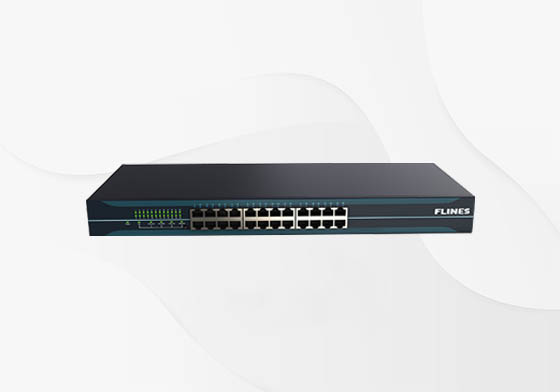

Ethernet Ports	24*10/100/1000Base-T RJ45
Switching capacity	48Gbps
Forwarding capacity	35.7Mpps
Power Supply	274W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：53V4.7A/12V2.0A
Operating Tempture	0℃～45℃
POE	Support POE+，802.3af（15.4W/port） and 802.3at（30W/port），total PoE power capacity 249W
Mode Switch	•Standard
	•Uplink
	•Isolate
	•Clone

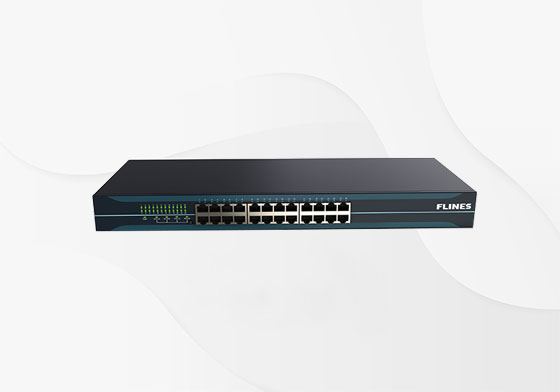

Ethernet Ports	24*10/100/1000Base-T RJ45
Switching capacity	48Gbps
Forwarding capacity	35.7Mpps
Power Supply	18W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：12V1.5A
Operating Tempture	0℃～45℃
POE	Not Support
Mode Switch	•Standard
	•Uplink
	•Isolate
	•Clone

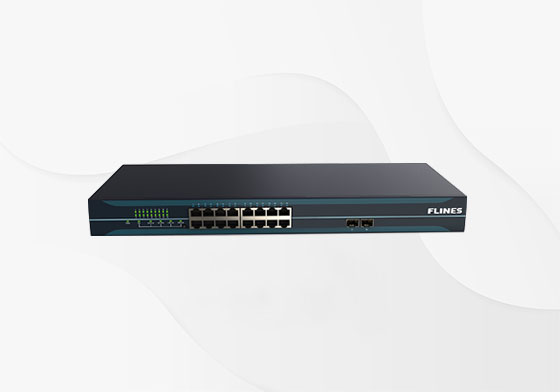

Ethernet Ports	16*10/100/1000Base-T RJ45
Ethernet Ports	2*100/1000M SFP
Switching capacity	36Gbps
Forwarding capacity	35.7Mpps
Power Supply	274W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：53V4.7A/12V2.0A
Operating Tempture	0℃～45℃
POE	Support POE+，802.3af（15.4W/port） and 802.3at（30W/port），total PoE power capacity 249W
Mode Switch	•Standard
	•Uplink
	•Isolate
	•Clone

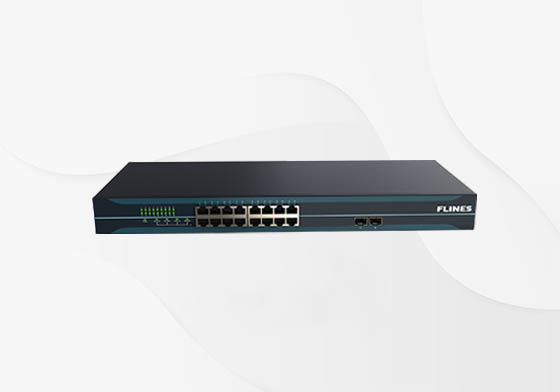

Ethernet Ports	16*10/100/1000Base-T RJ45
Ethernet Ports	2*100/1000M SFP
Switching capacity	36Gbps
Forwarding capacity	35.7Mpps
Power Supply	18W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：12V1.5A
Operating Tempture	0℃～45℃
POE	Not Support
Mode Switch	•Standard
	•Uplink
	•Isolate
	•Clone

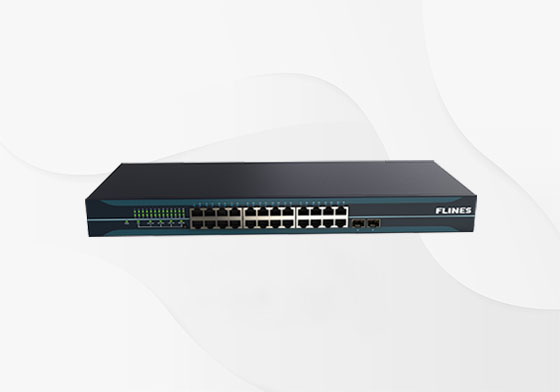

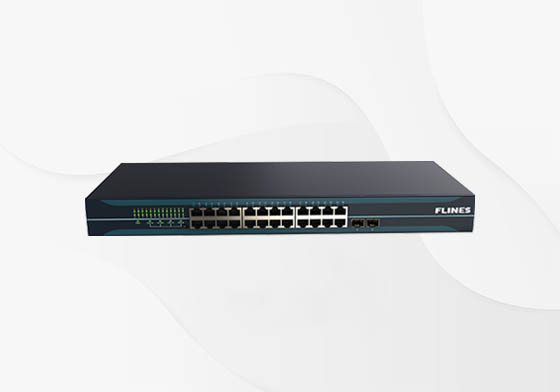

Ethernet Ports	24*10/100/1000Base-T RJ45
Ethernet Ports	2*100/1000M SFP
Switching capacity	52Gbps
Forwarding capacity	35.7Mpps
Power Supply	18W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：12V1.5A
Operating Tempture	0℃～45℃
POE	Not Support
Mode Switch	•Standard
	•Uplink
	•Isolate
	•Clone

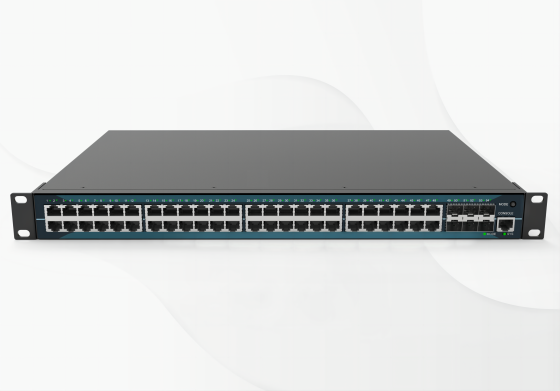

Ethernet Ports	4810/100/1000Base-T RJ45 + 610G SFP+
Forwarding capacity	174Mpps/196Mpps
Management	RJ45 RS232 management port
PoE	Not Support
Power Supply	54W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：12V/4.5A
Thermal	Air Cooling，1 Fan
Operating Tempture	0℃～45℃
Main Software Feature	Support static MAC configuration、Port Aggregation、 STP/RSTP/MSTP、IEEE802.1QVLAN、QoS、ACL、IGMP Support IPv4/IPv6 Static routing、 Snooping v1/v2/v3、OSPFv1/v2 Support WEB Network management、CLI、SNMP Support ARP/IP/DoS defense Support AAA authentication、Radius authentication

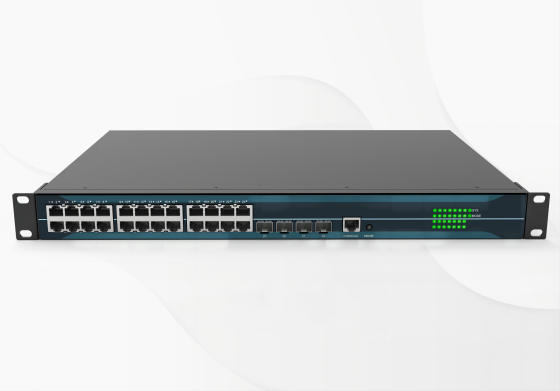

Ethernet Ports	2410/100/1000Base-T RJ45 + 410G SFP+
Forwarding capacity	108Mpps/126Mpps
Management	RJ45 RS232 management port
PoE	Not Support
Power Supply	36W AC Power Supply，Input：100-240VAC，output：12V/3A
Thermal	Air Cooling，1 Fan
Operating Tempture	0℃～45℃
Main Software Feature	Support static MAC configuration、Port Aggregation、 STP/RSTP/MSTP、IEEE802.1QVLAN、QoS、ACL、IGMP Support IPv4/IPv6 Static routing、 Snooping v1/v2/v3、OSPFv1/v2 Support WEB Network management、CLI、SNMP Support ARP/IP/DoS defense Support AAA authentication、Radius authentication

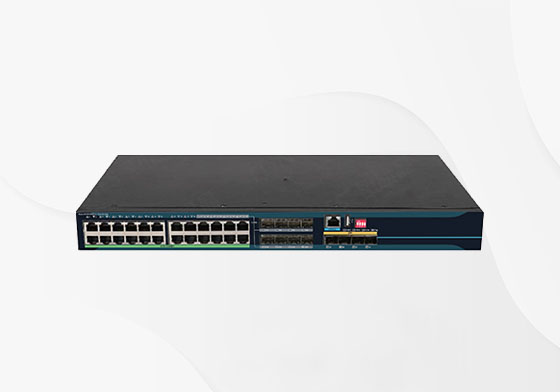

Ethernet Ports	16*10/100/1000Base-T RJ45
	8*GE Combo
	4*10G SFP+
Management	RJ45 RS232 management port
Switching capacity	336Gbps
Forwarding capacity	126Mpps
Power Supply	36W AC Power Supply，Input：100-240VAC, 50 / 60HZ，output：12V3.0A
Operating Tempture	-40℃~75℃
POE	Not Support
Mode Switch	Support 4 mode
DI&DO	1DO,1DI
Main Software Feature	Supports four-element binding, ARP/IP/DoS defense, and 802.1X authentication
	Support IEEE 802.1Q VLAN, QoS, ACL, spanning tree, multicast Supports port security, port monitoring, and port isolation
	Supports Web NMS, CLI command line, and SNMP

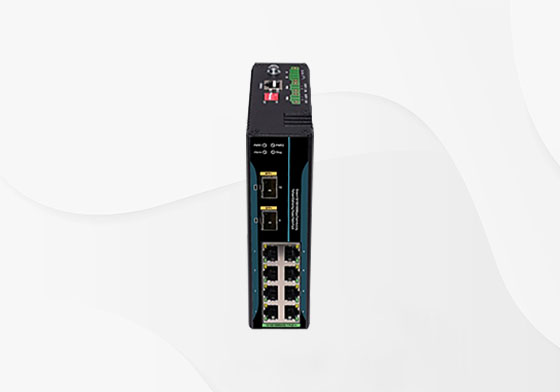

Ethernet Ports	8*10/100/1000Base-T RJ45
Ethernet Ports	2*GE Combo
Management	RJ45 RS232 management port
Switching capacity	20Gbps
Forwarding capacity	35.7Mpps
Power Supply	Dual DC Power in（18~60VDC）<12W
Operating Tempture	-40℃~75℃
POE	Not Support
Mode Switch	Support 4 mode
DI&DO	1DO,1DI
Main Software Feature	Supports four-element binding, ARP/IP/DoS defense, and 802.1X authentication
	Support IEEE 802.1Q VLAN, QoS, ACL, spanning tree, multicast Supports port security, port monitoring, and port isolation
	Supports Web NMS, CLI command line, and SNMP

Ethernet Ports	32400GE QSFP-DD+225GE SFP28
Maximum I/O bandwidth	12800Gbps
Switching Silicon	Clounix CLX850128
CPU	COM-E，Intel® Xeon® D-1627 Processor 4Cores 2.90 GHz
SDRAM	16GB DDR4 with ECC
SSD Storage	256GB M.2 SATA SSD
Management	RJ45 Ethernet management port RJ45 RS232 management port USB 2.0 Type A
Power Supply	1300W AC Power supply(1+1 redundant)
FAN	6 FANs，support 5+1 redundancy mode
BMC	Support BMC（Optional）
Operating Tempture	0℃～45℃
Software Support	Support ONIE and Open Source SONiC

Ethernet Ports	48100GE DSFP+ 8400GE QSFP-DD
Maximum I/O bandwidth	8000Gbps
Switching Silicon	Clounix CLX850080
CPU	COM-E，Intel® Xeon® D-1627 Processor 4Cores 2.90 GHz
SDRAM	16GB DDR4 with ECC
SSD Storage	256GB M.2 SATA SSD
Management	RJ45 Ethernet management port RJ45 RS232 management port USB 2.0 Type A
Power supply	1300W AC Power supply(1+1 redundant)
FAN	6 FANs，support 5+1 redundancy mode
BMC	Support BMC（Optional）
Operating Tempture	0℃～45℃
Software Support	Support ONIE and Open Source SONiC

Ethernet Ports	4825GE SFP28+ 8100GE QSFP28
Maximum I/O bandwidth	2000Gbps
Switching Silicon	Clounix CLX850032P
CPU	COM-E，Intel® Xeon® D-1627 Processor 4Cores 2.90 GHz
SDRAM	8GB DDR4 with ECC
SSD Storage	128GB M.2 SATA SSD
Management	RJ45 Ethernet management port RJ45 RS232 management port USB 2.0 Type A
Power supply	550W AC Power supply(1+1 redundant)
FAN	5 FANs，support 4+1 redundancy mode
BMC	Support BMC（Optional）
Operating Tempture	0℃～45℃
Software Support	Support ONIE and Open Source SONiC
